SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S

Name: SOT23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S
Brand: XUYANG
Price: 1 USD

China SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S wholesale

Brand Name : XUYANG

Model Number : BAT54 BAT54A BAT54C BAT54S

Certification : ISO9001/RoHS

Place of Origin : China

MOQ : 3000pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per 1 week

Delivery Time : 5 - 8 work days

Packaging Details : tape in reel, 2500pcs/reel

Part number : BAT54 BAT54A BAT54C BAT54S

VR : 30V

Package : SOT-23

SPQ : 3000pcs

Forward current : 200mA

Junction temperature : -55-150℃

Contact Now

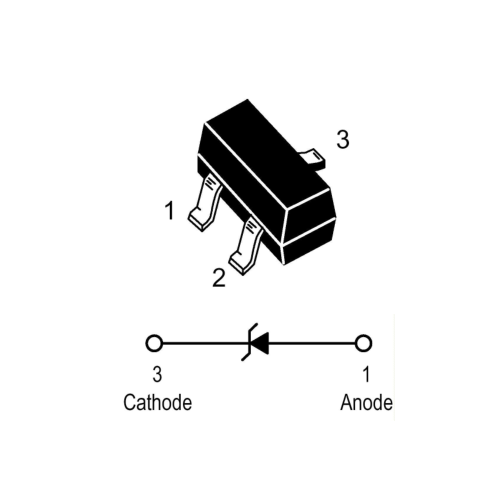

SOT-23 Plastic-Encapsulate Diode Schottky Dode BAT54 BAT54A BAT54C BAT54S

Features

Power Dissipation
PD : 200 mW (Tamb=25 ℃)

Absolute Maximum Ratings

Maximum Ratings @T A =25

Parameter	Symbol	Limits	Unit
Peak Repetitive Peak reverse voltage Working Peak Reverse Voltage DC Blocking Voltage	V RRM V RWM V R	30	V
Forward Continuous Current	I FM	200	mA
Power Dissipation	Pd	200	mW
Storage temperature	T STG	-55-150	℃

Electrical Characteristics@T A =25

Parameter	Symbol	Min.	Typ.	Max	Unit	Conditions
Reverse Breakdown Voltage	V (BR)R	30			V	IR=100µA
Forward voltage	V F1			0.24	V	I F =0.1mA
	V F2			0.32	V	I F =1mA
	V F3			0.40	V	I F =10mA
	V F4			0.50	V	I F =30mA
	V F5			1	V	I F =100mA
Reverse current	I R			2	µA	V R =25V
Diode Capacitance	C D			10	pF	V R =1V,f=1MHz
Reverse Recovery Time	t rr			5	nS	I F =I R =10mA Irr=0.1XI R ,R L =100Ω

SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S

Best Quality Assurance:

1. Original & New Only
2. Most Competitive Price & Best Service
3. We can provide customers samples for free, the maximum sample quantity is 50 pcs.

Customers only pay for the freight cost

Payment Methods :

· T/T

· Western Union

· PayPal

· other payment term as you like.

Shipping way :

Expedited Int'l Shipping (FEDEX, DHL, UPS, TNT) it normally cost 4-6 days
